Son equipos fundamentales y críticos para los procesos de reducción directa.

Su función es comprimir y favorecer la recirculación de la corriente de gas proveniente del reactor por el recuperador de calor y reformador para formar los gases reductores, ricos en hidrógeno y monóxido de carbono, que se utilizan para la reducción de mineral de hierro dentro del reactor y obtener la calidad de producto deseada.

Estos se encuentran instalados en las Plantas Briqueteras y de Reducción Directa pertenecientes al Sector Hierro Acero.

Ficha Técnica:

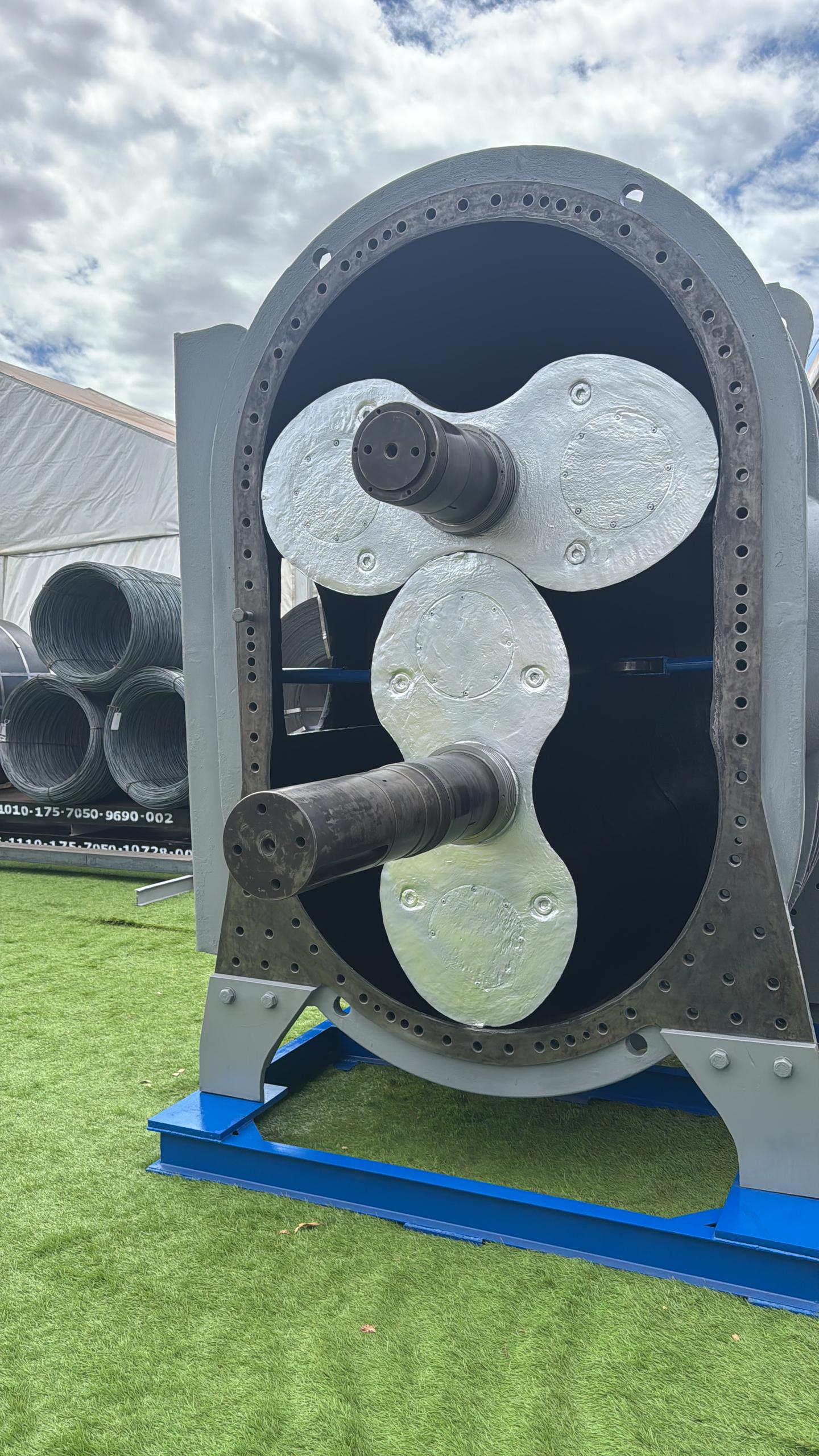

AERZEN BLOWER

• TYPE: Lobe - Rotary Piston blower
• Size: GQ 22.23.xz
• Application: Compression of Process Gas
• Serials: 312605, 312606, 312607, 323122
• Housing: Gastight construction with pre-inlet chamber, Discharge side pressure stage PN 2,5, Connection lever for vacuum
• Material: GG20, Intake socket DN 900, DIN 2532 PN10, Discharge socket DN 900, DIN 2532 PN10
• Material: GG20
• Rotary Piston: Dynamically balanced, close to gas tight.
• Material: GG20, Strips wear material 1.4021.
• Shaft Material: C 45, material 1.05103
• Timing Gears: Helicoidal gear 16 Mn Cr 5 E, material 1.7131
• Bearings: Roller bearings according to DIN 5412 + DIN 628
• LUBRICATION: Forced oil lubrication by 2 oil pumps electrically driven (1 in operation and 1 in stand-by).
• Sealing at conveyance chamber: Single acting mechanical seals with oil trap in combination with labyrinth seals and oil slingers, slide ring and counter rings. Material: tungsten Carbide.
• Labyrinth seals material: 1.4008
• Sealing at driving shaft: 3 radial sealing rings with grease tap.
• Direction of flow: counter clock wise (to the left)
• Direction of rotation viewed on driving end: clock wise (to the right)
• Drive: Via flexibly coupled spur gear with back-run safety device.
